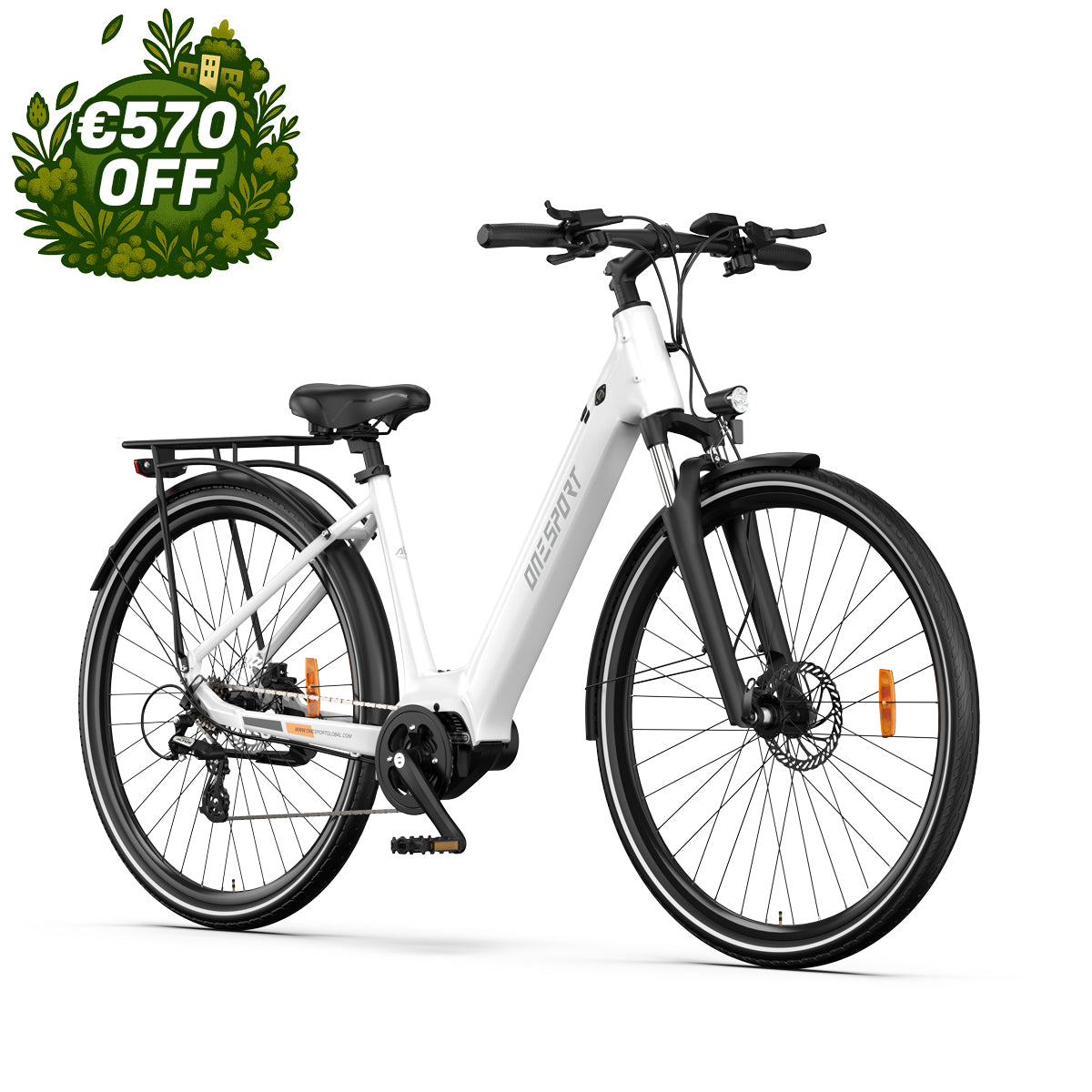

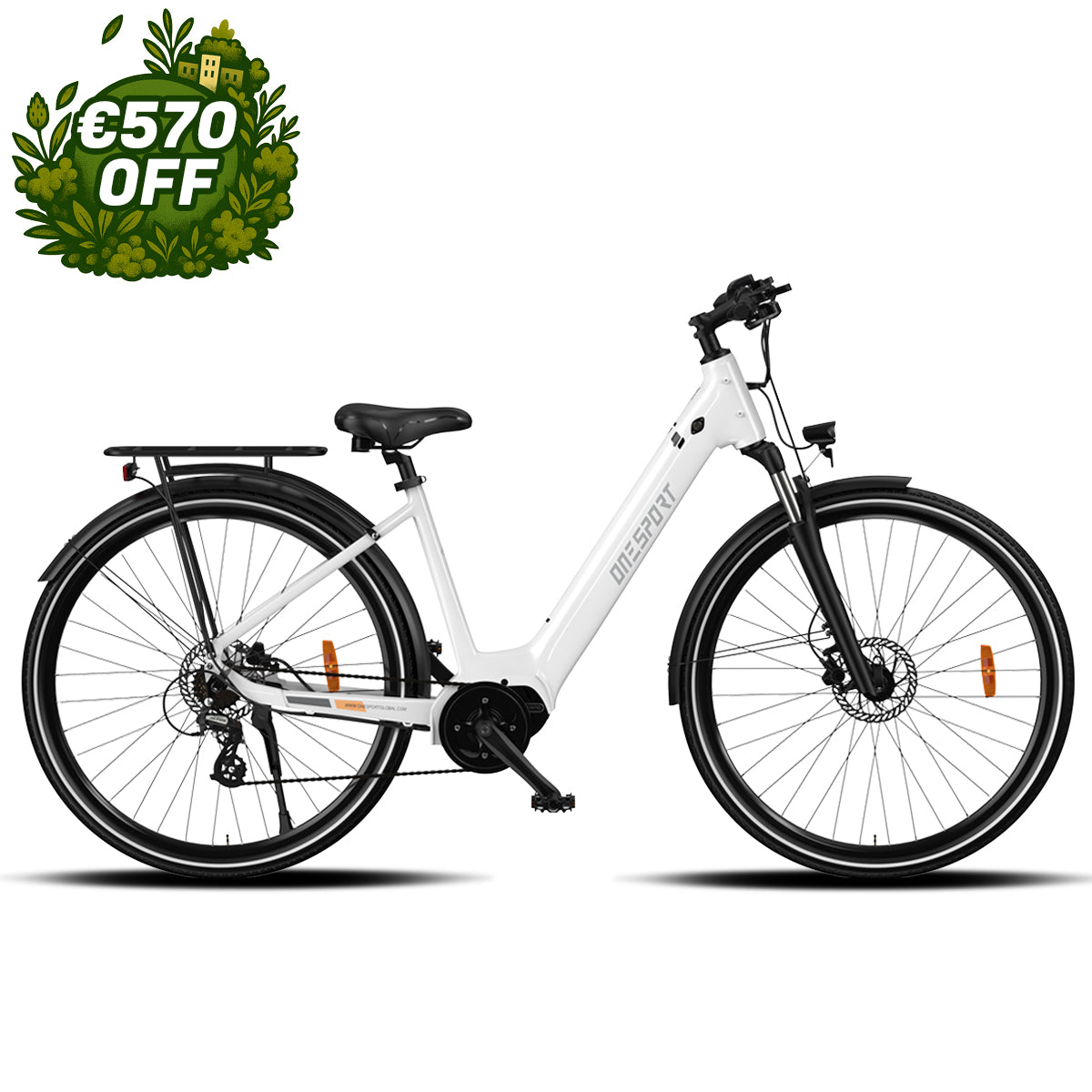

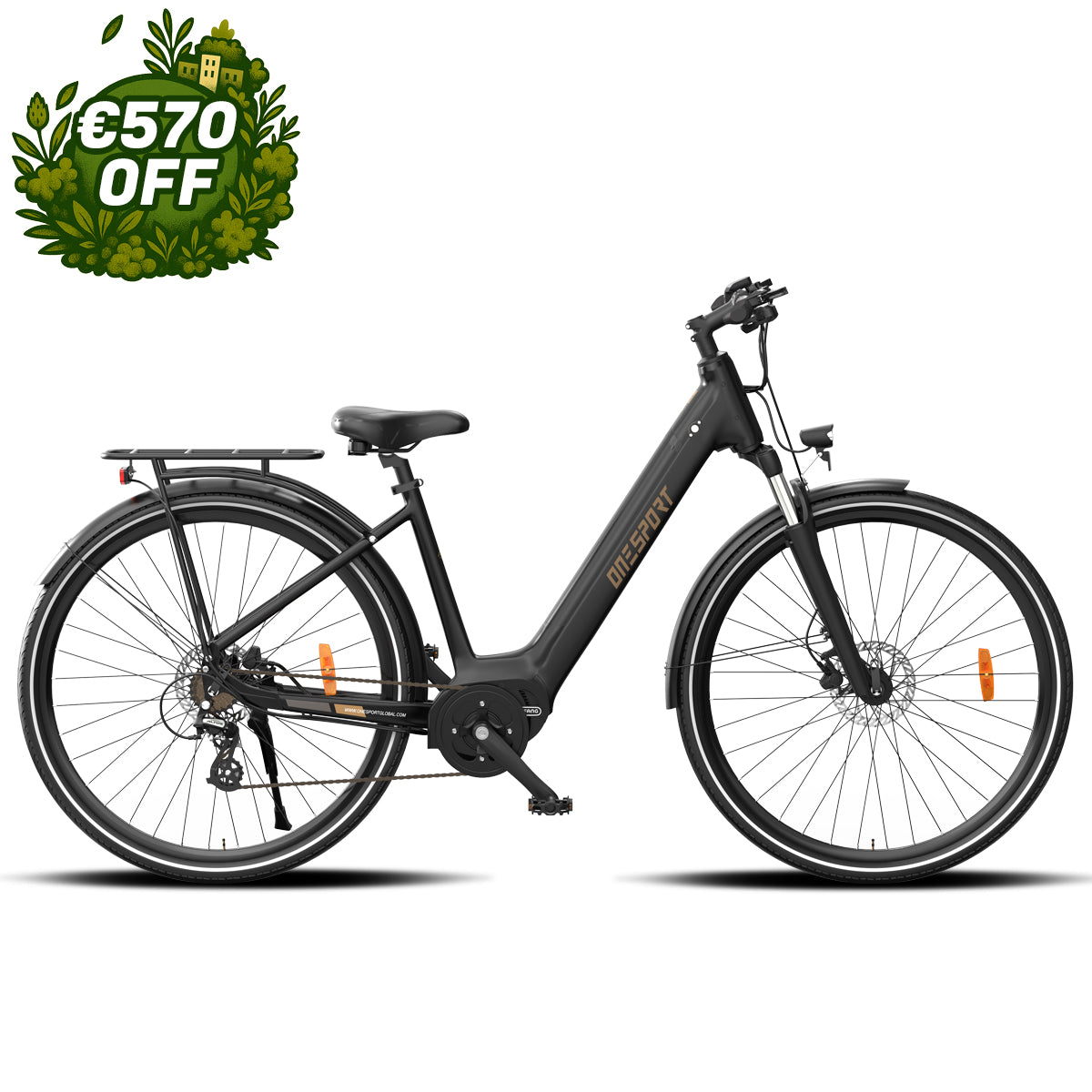

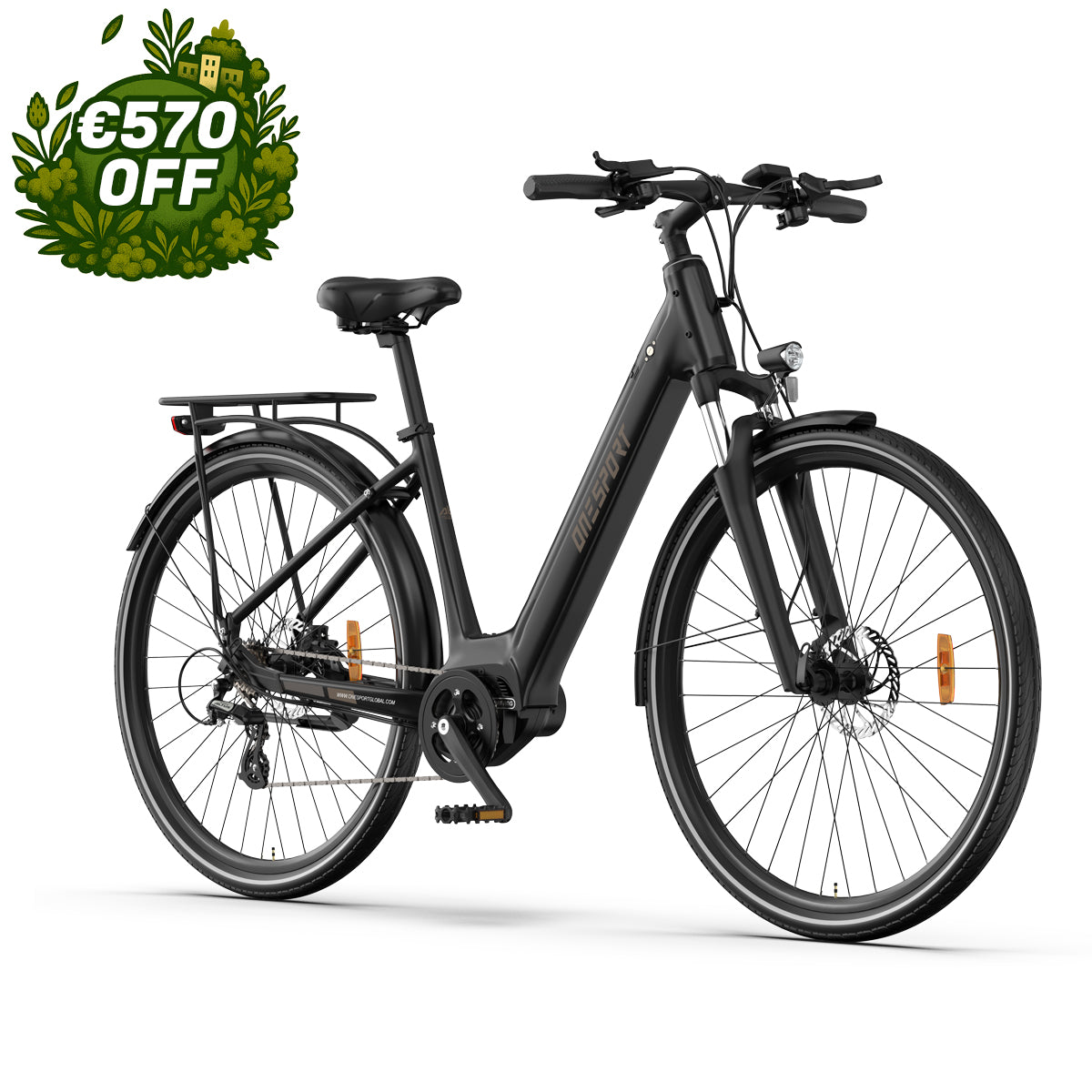

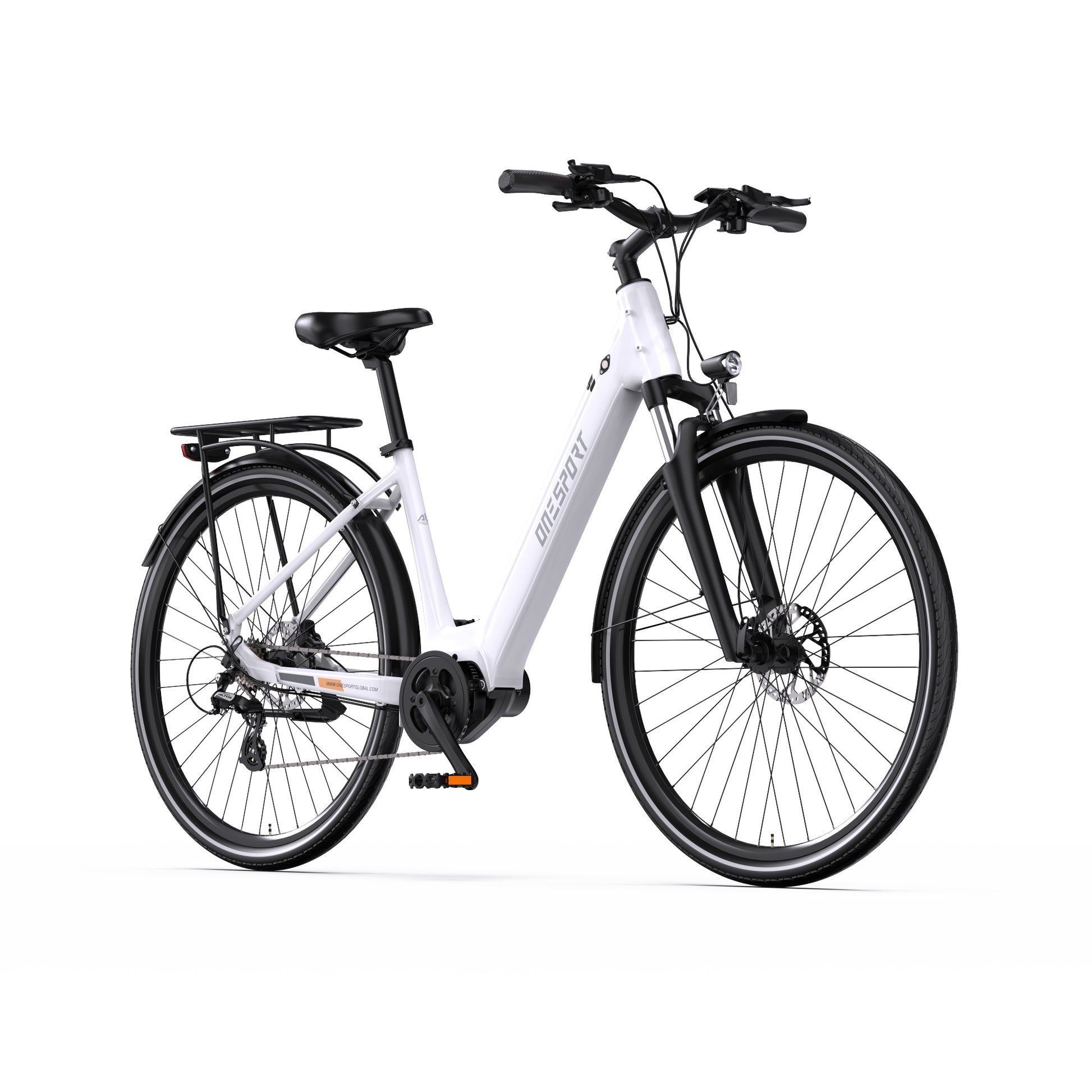

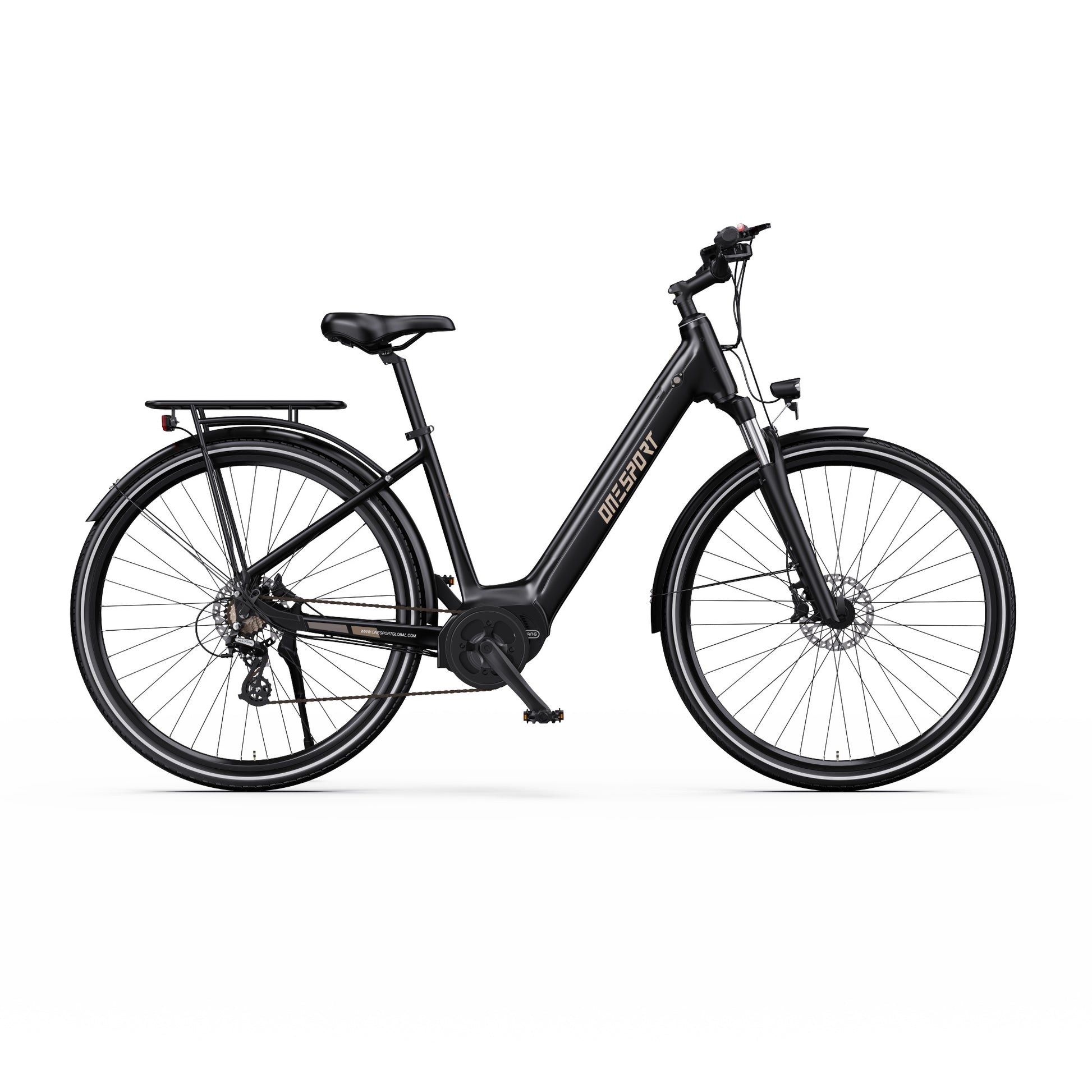

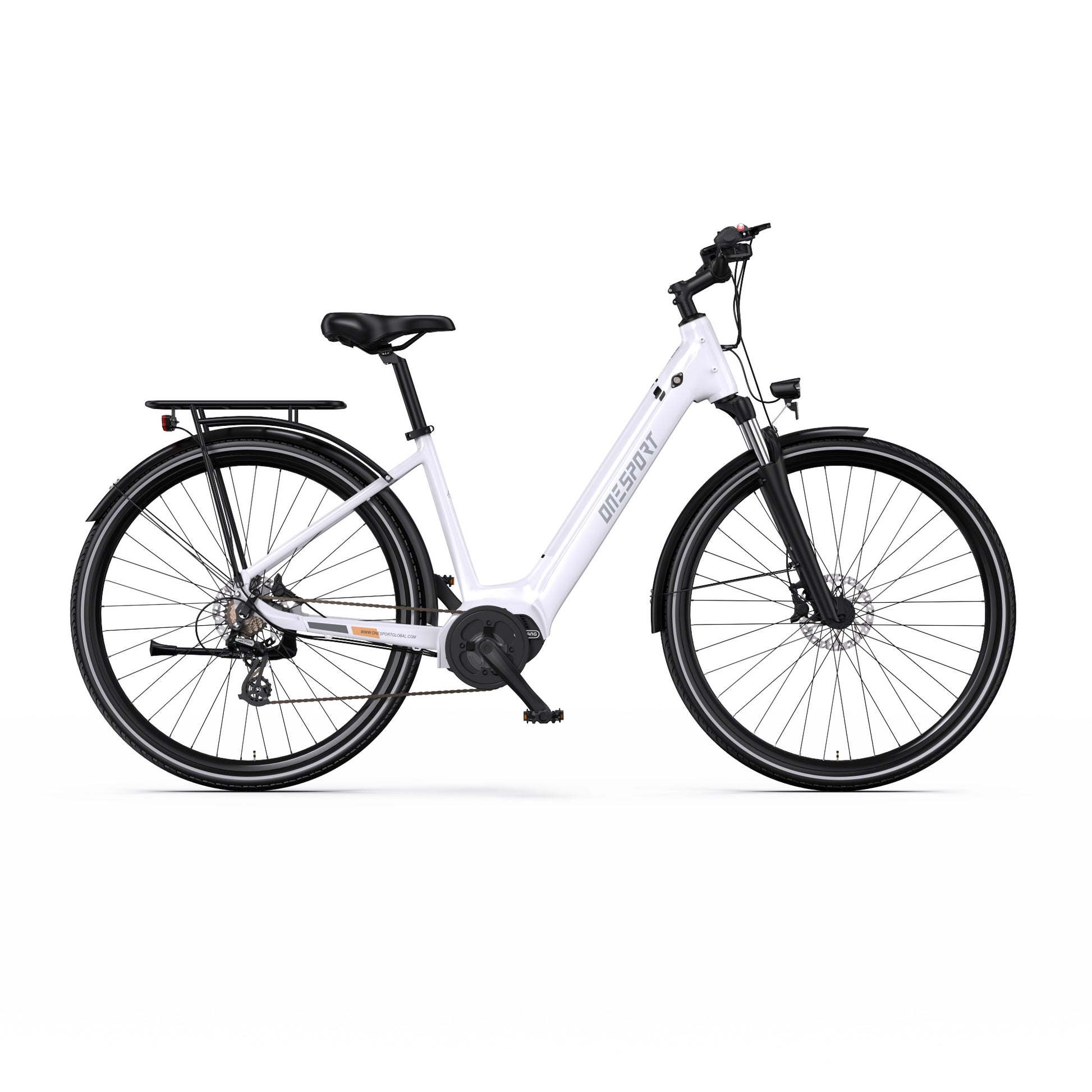

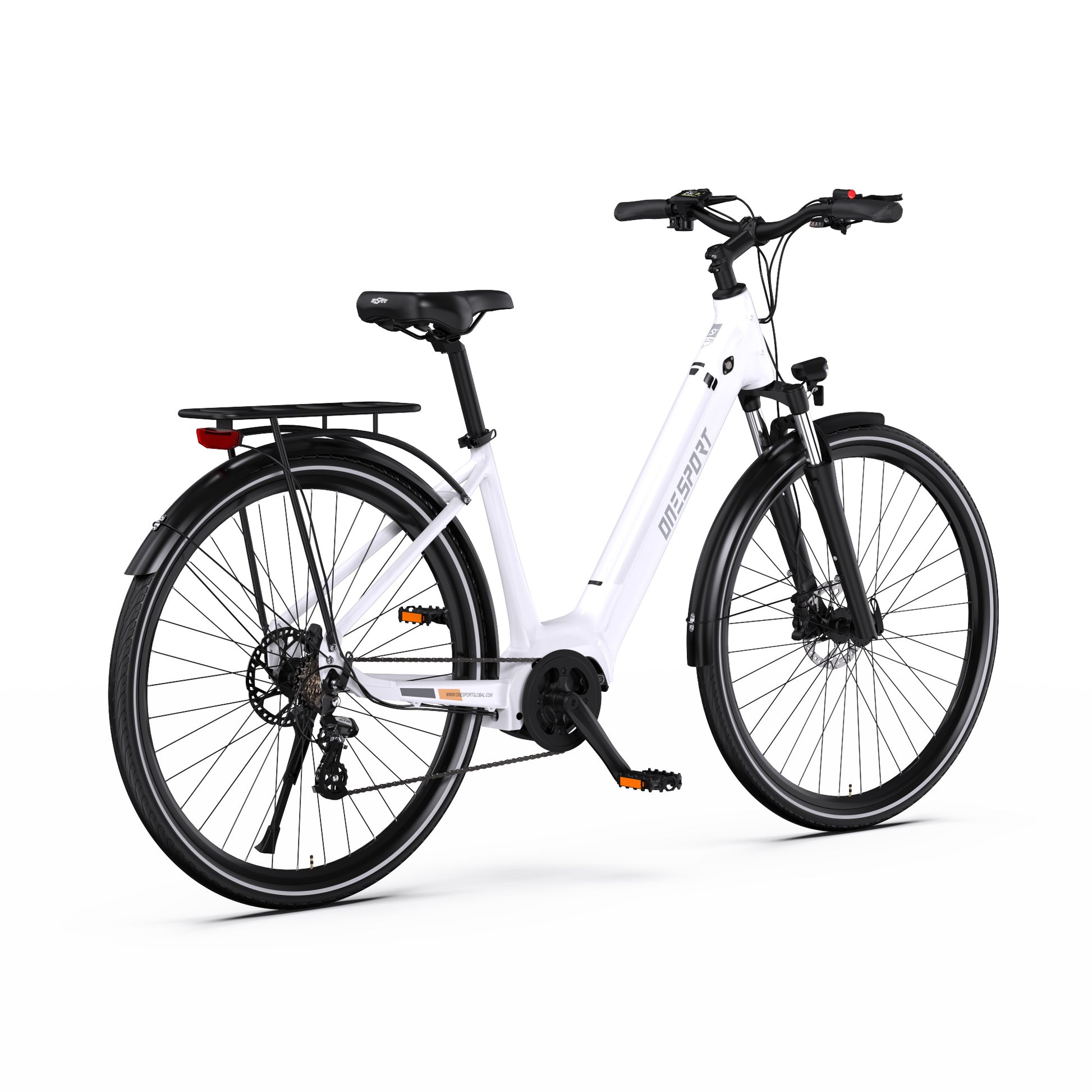

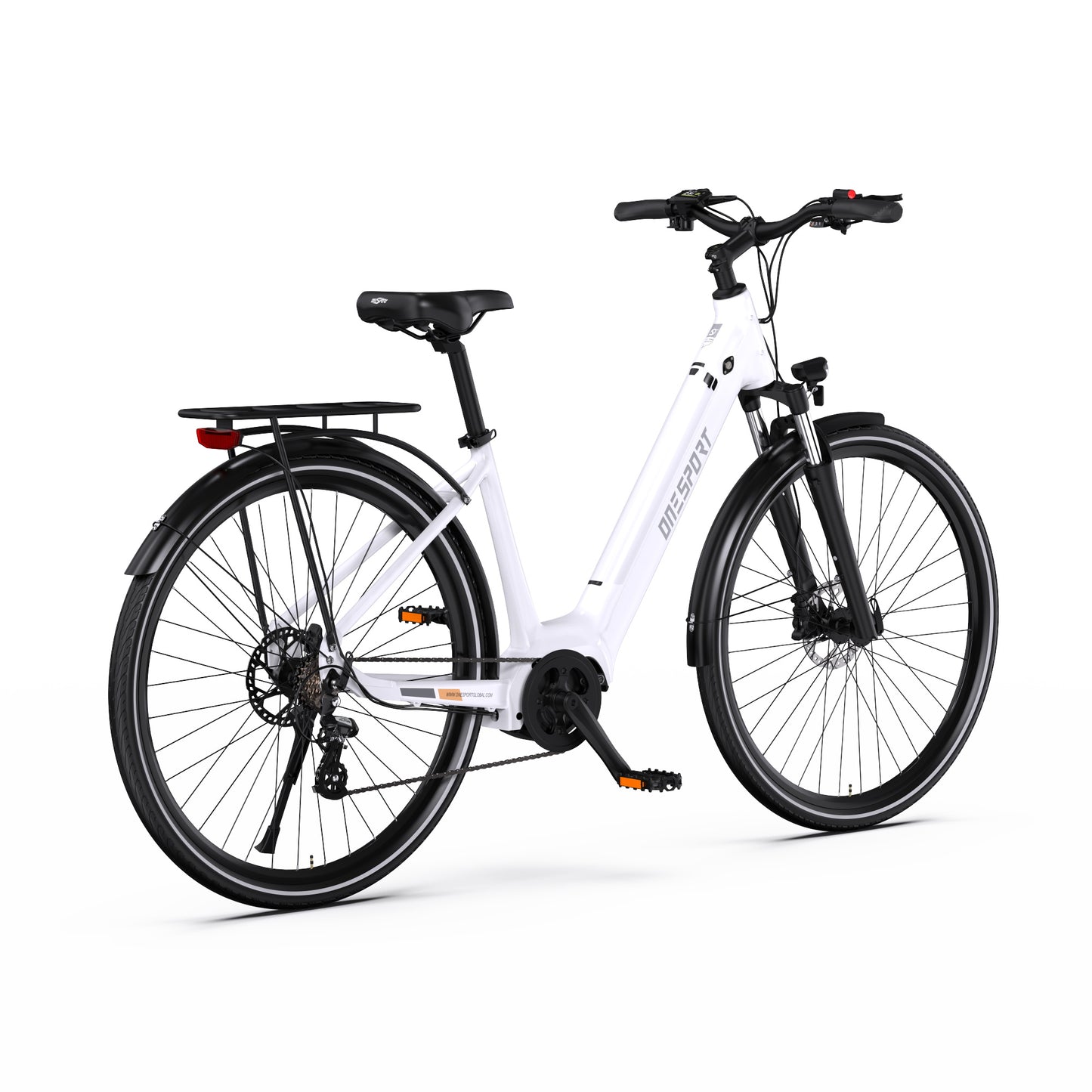

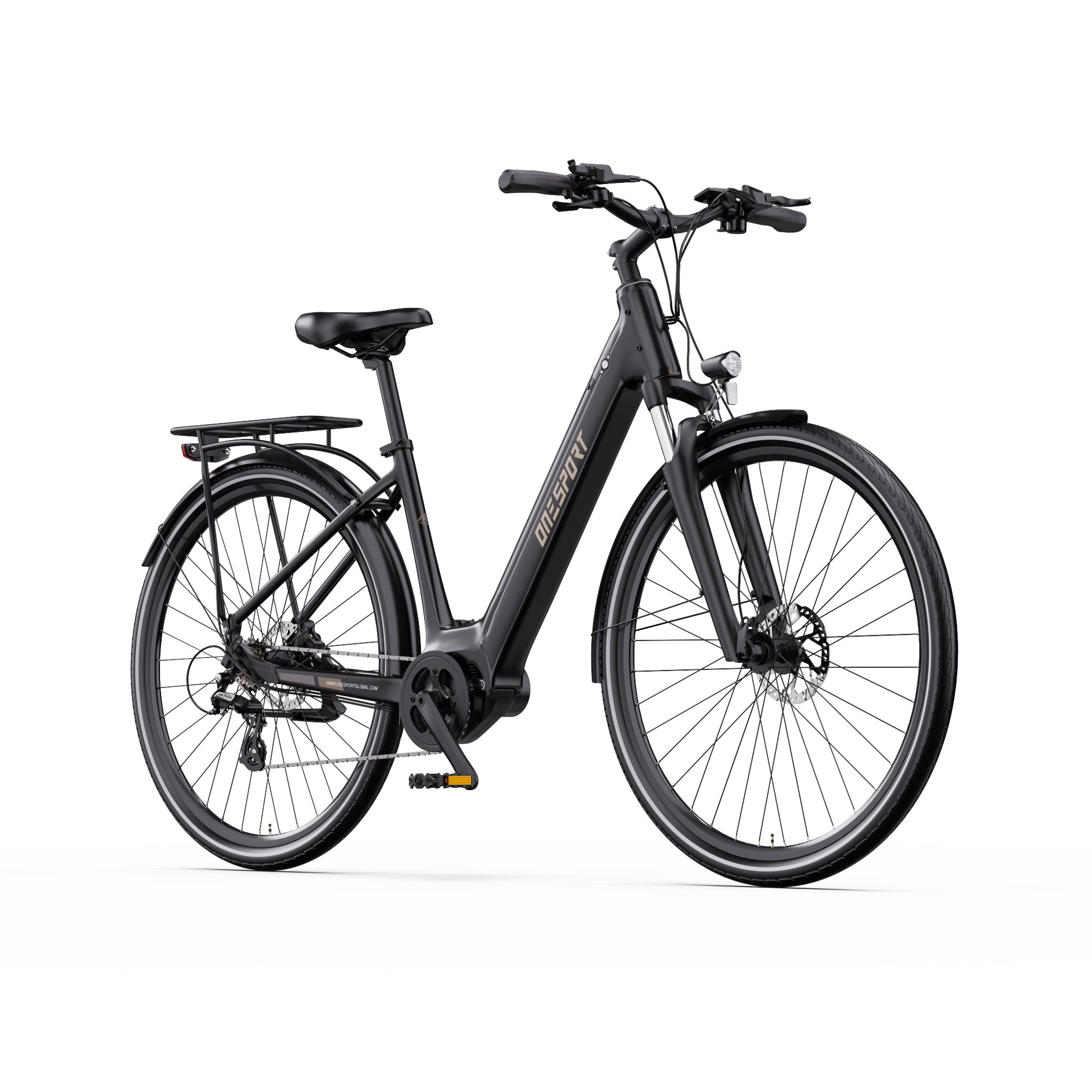

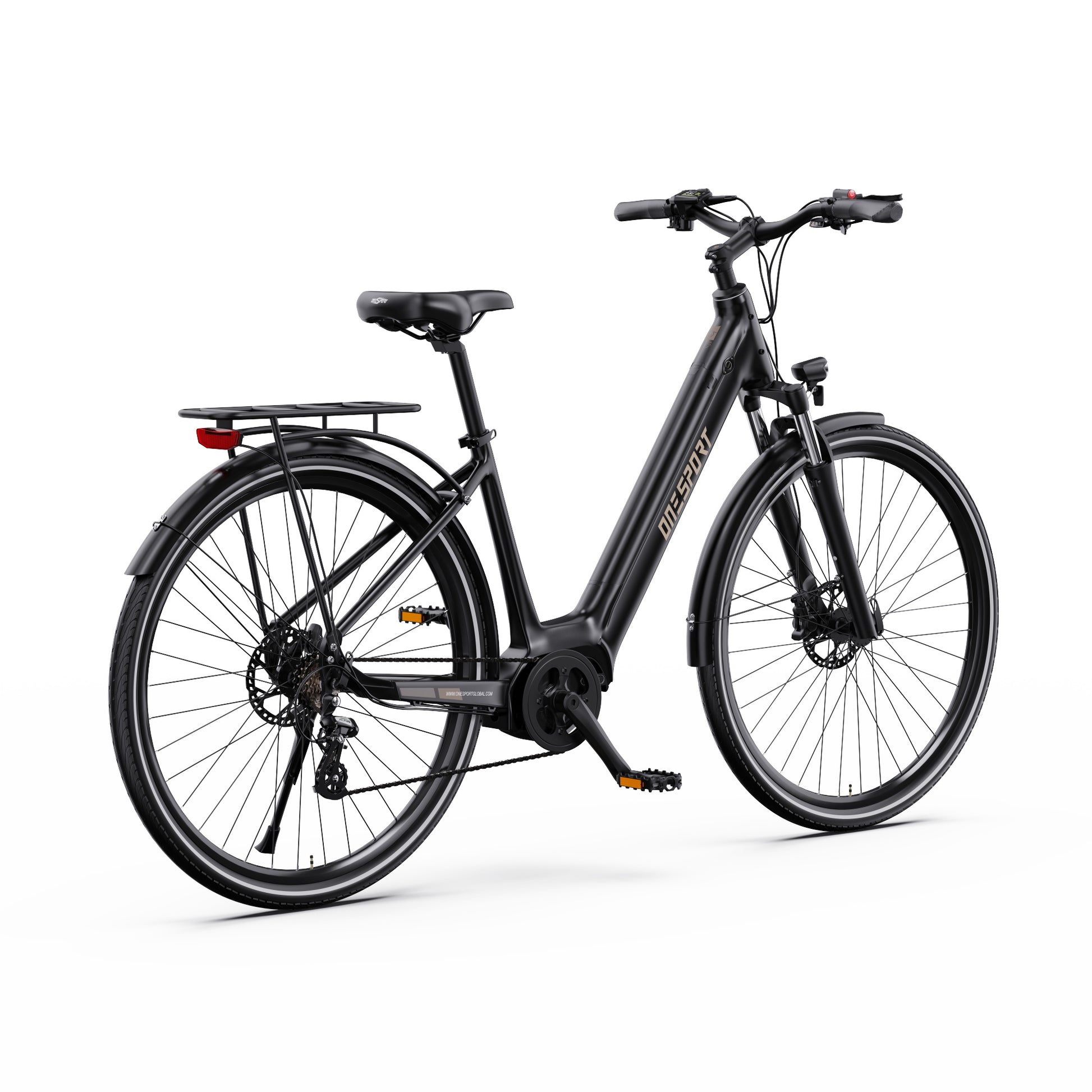

OneSport OT07 Commuter E-bike
OneSport OT 07 Detailed specifications

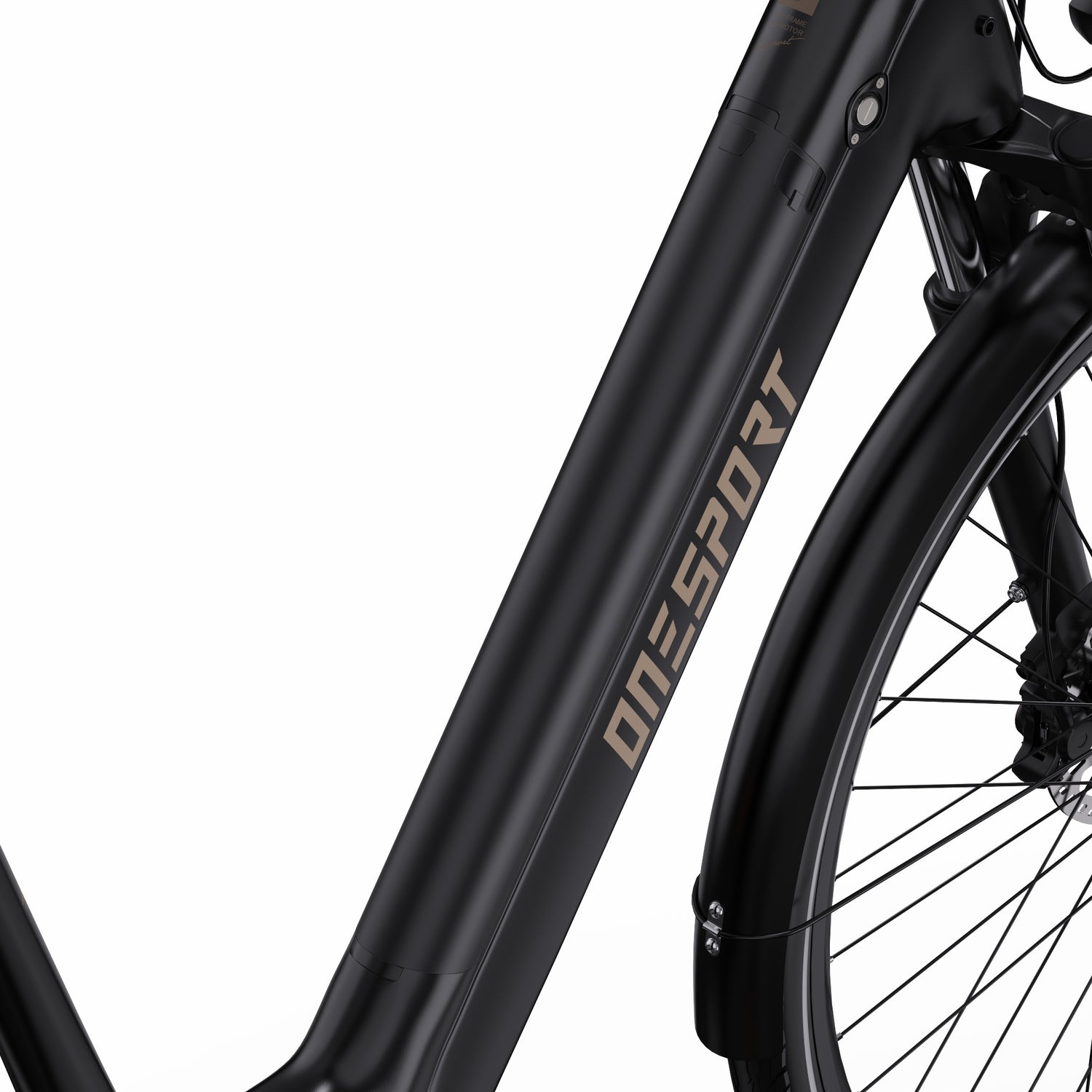

Body Material
Aluminum alloy
Color
Shell White & Matte Black
Maximum Load
120KG
Maximum Speed
25KM/H
Range
70-90Km in power-assisted mode
Maximum Climbing Angle
30 Degree

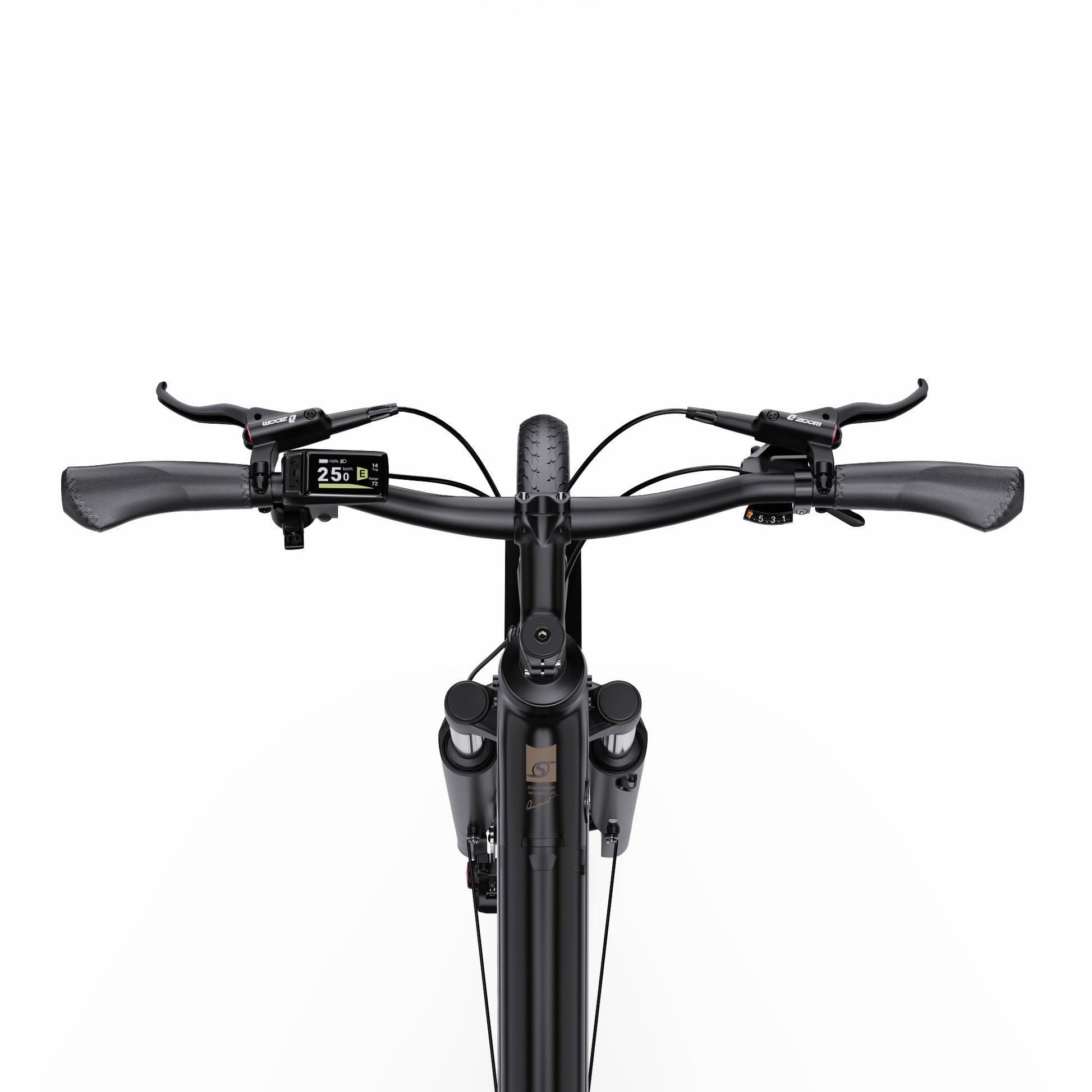

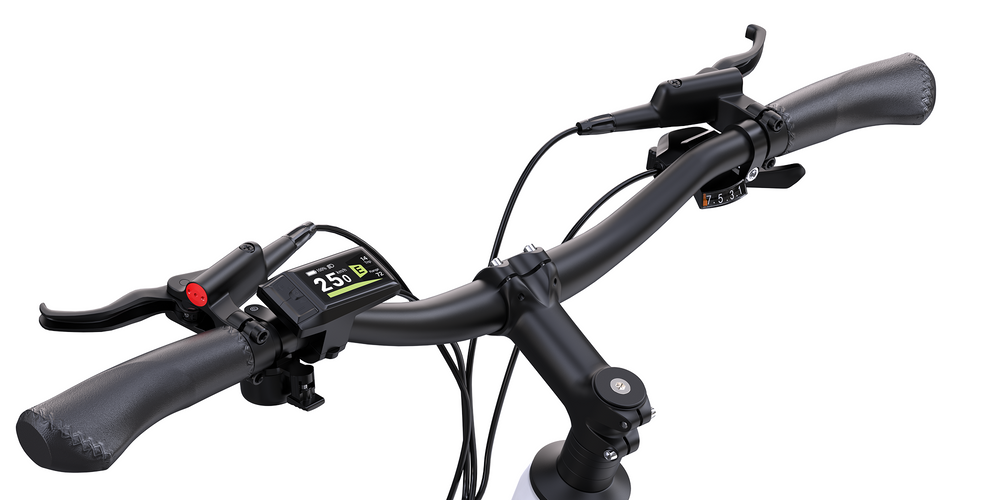

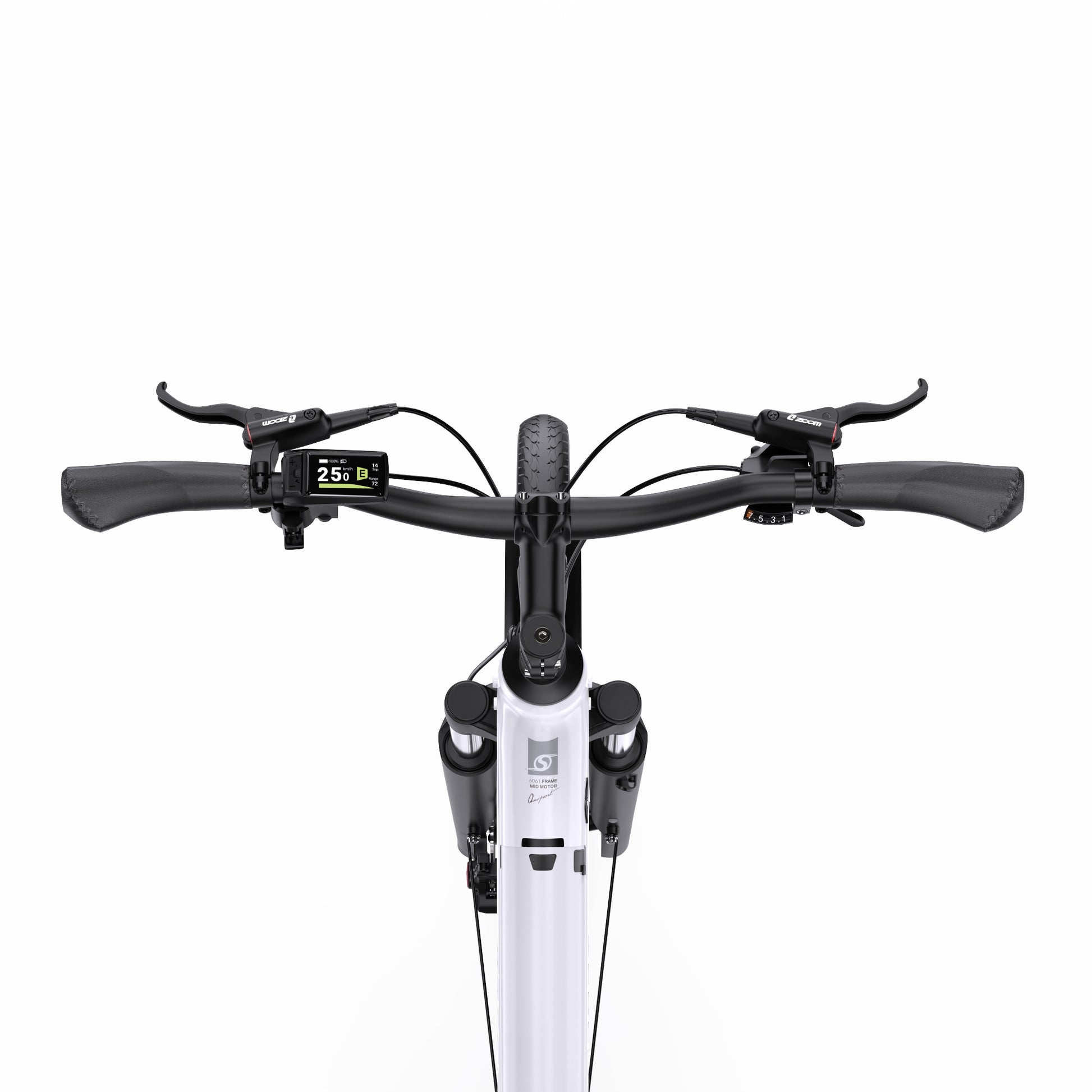

Instrument Display
0-5 level pedal assist

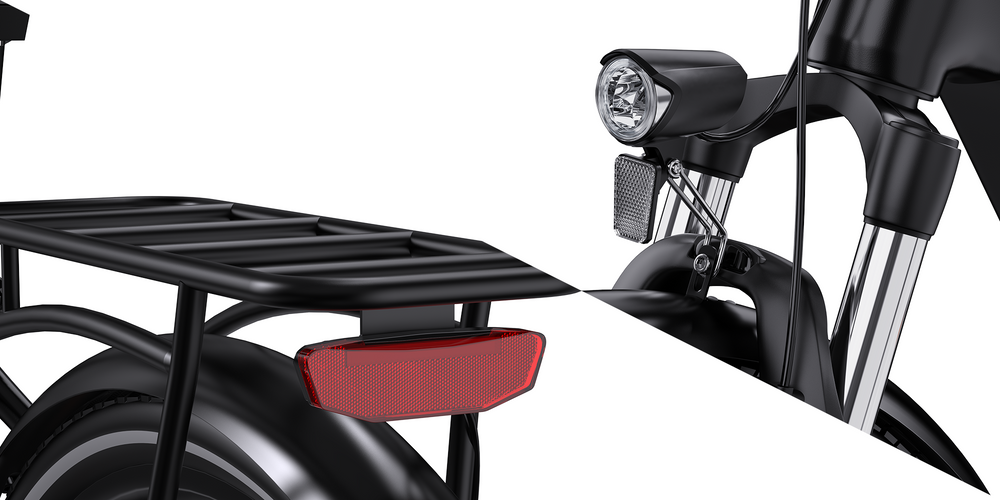

Front Lighting
Include
Tail Light
Include
Front Fender
Include
Rear Fender
Include

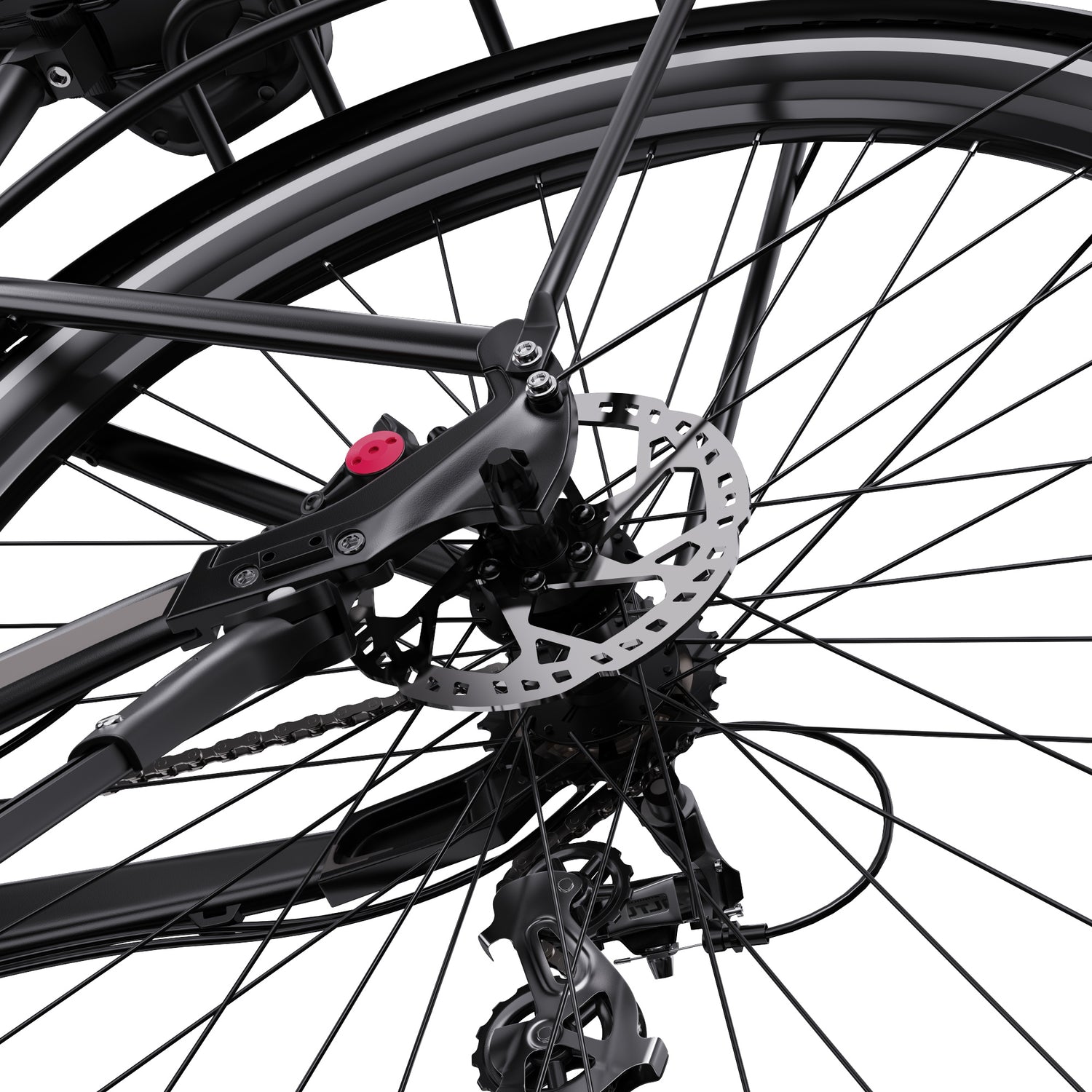

Braking Method
Left and right power-off brake handles, front and rear disc oil brakes
Hub Form
Spokes front wheel 13G rear wheel 13G,rim 700C double-layer aluminum rim
Tire Specifications
Pneumatic Tires with reflective strips

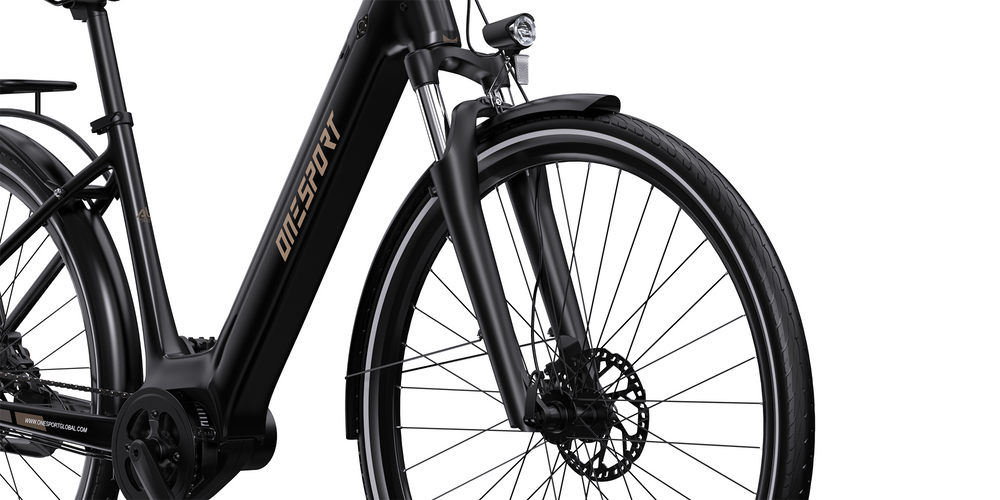

Front Fork
Aluminum shock iron front fork

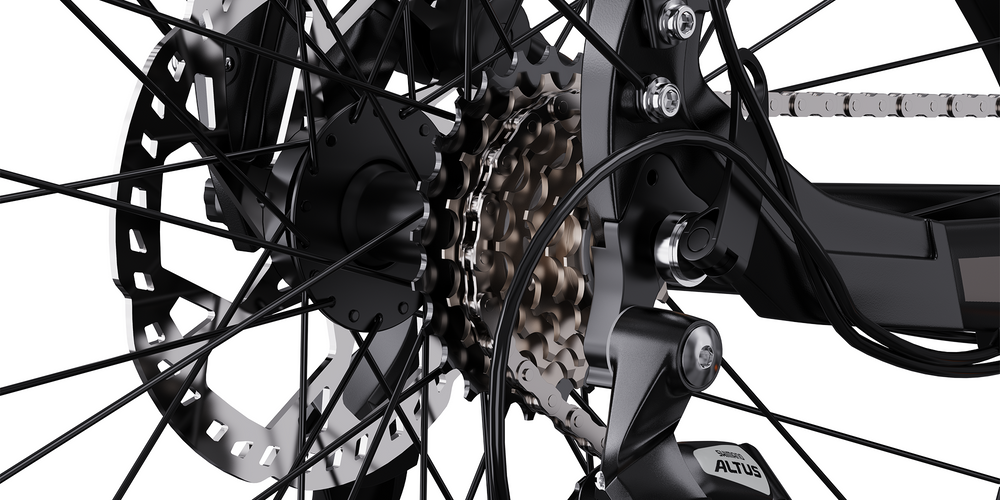

Gear
SHIMANO 1*7 speed

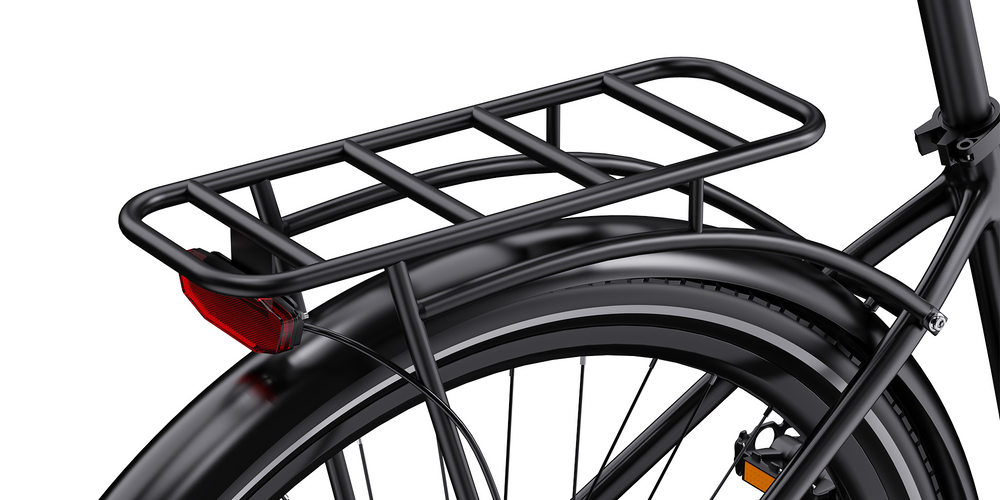

Rear Shelf
The aluminium rear shelf is detachable
Length
1900MM
Rear Height
670MM
Front Height
1050MM
Packing Size
1530MM*240MM*800MM
Tire Size
700*45C (Approximately 27.56 × 1.77 inches)
Net Weight/Gross Weight
24Kg/30Kg
Battery Size
414MM*75MM*67MM
Front Handle Adjustable Height
non-adjustable
Saddle Height
910MM-1020MM
Brake Pad Diameter
160MM*1.8MM

Battery Capacity
10.4Ah
Battery Rated Voltage
36V

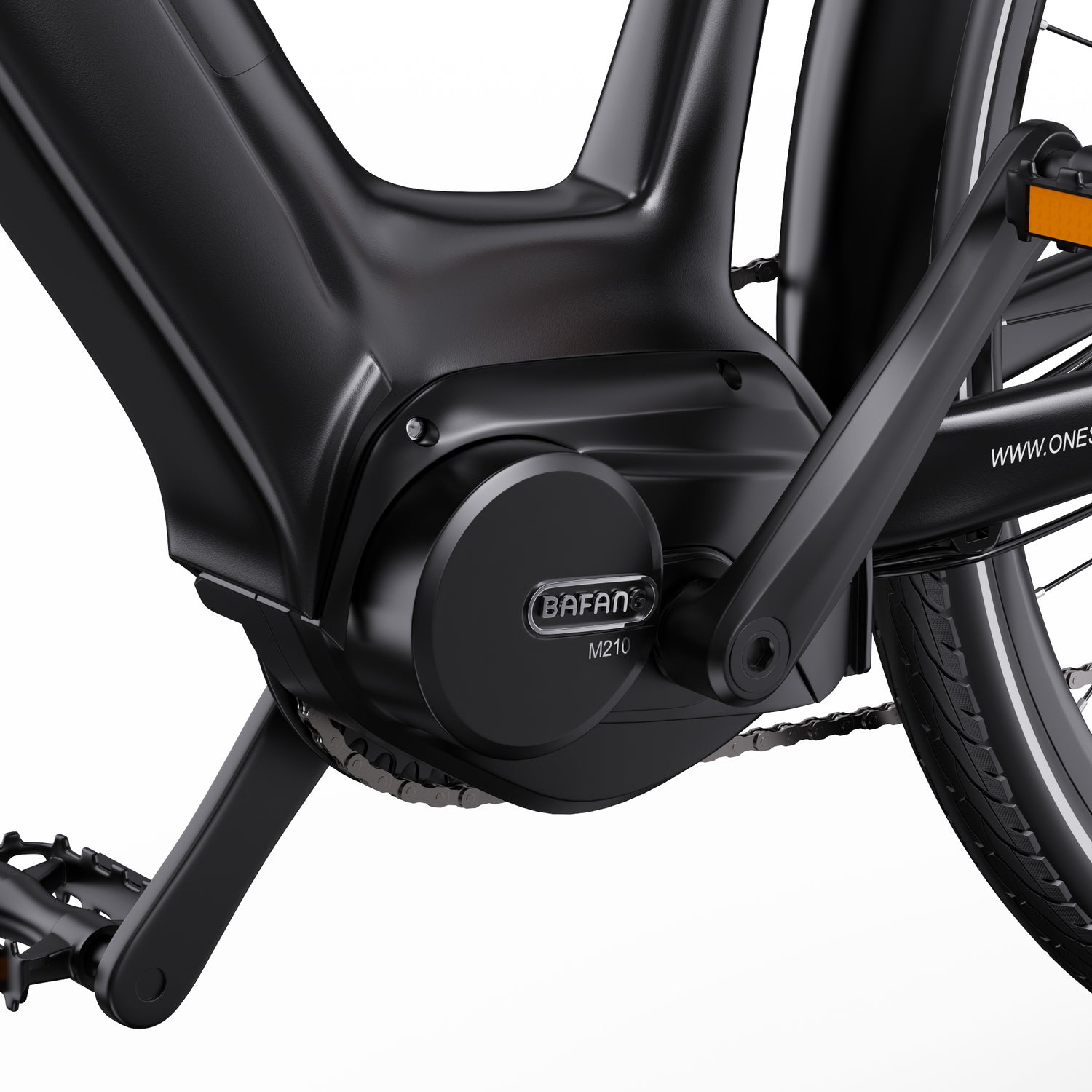

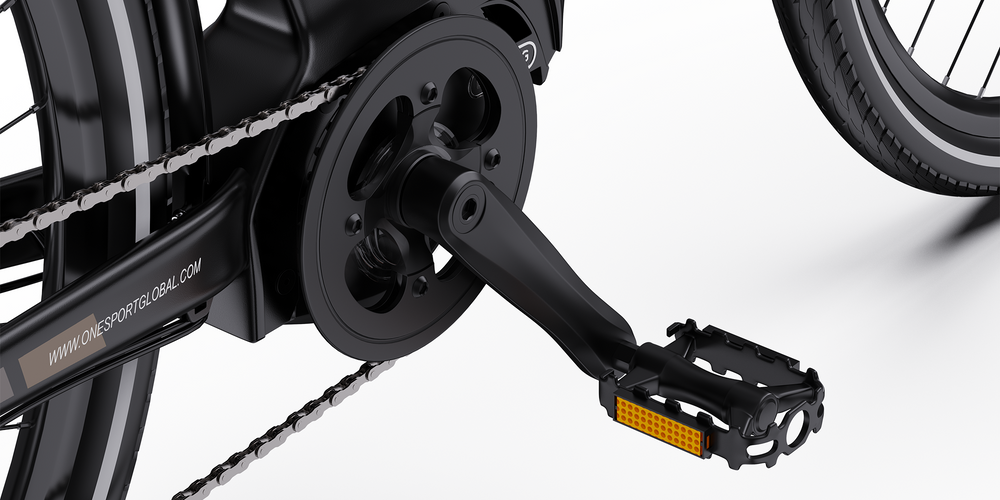

Motor Form
Pedal assist mode
Motor Rated Power
250W
Torque
65Nm
Controller
BAFANG Controller
Charger Output
42V 2.0A
Charging Time
5-6 Hours
Proper Temperature
-10°C-40 °C(Not recommended for use in harsh conditions)
Waterproof Level
IPX4
