Body Material
Aluminum alloy
Color
Bright Blue
Maximum Load
150KG
Maximum Speed
25KM/H
Range
80-100Km in power-assisted mode is about
Maximum Climbing Angle
20 Degree

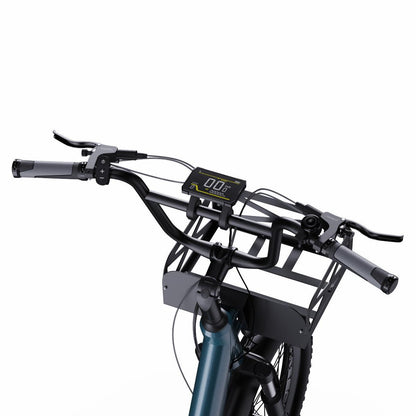

Instrument Display
0-3 level pedal assist
Front Lighting
Include
Tail Light
Include
Front Fender
Include
Rear Fender
Include
Braking Method
Left and right power-off brake handles, front and rear disc oil brakes
Hub Form
Wire Spoke Wheel
Tire Specifications
Pneumatic Tires
Front Fork
Suspension Fork
Gear
Single Speed

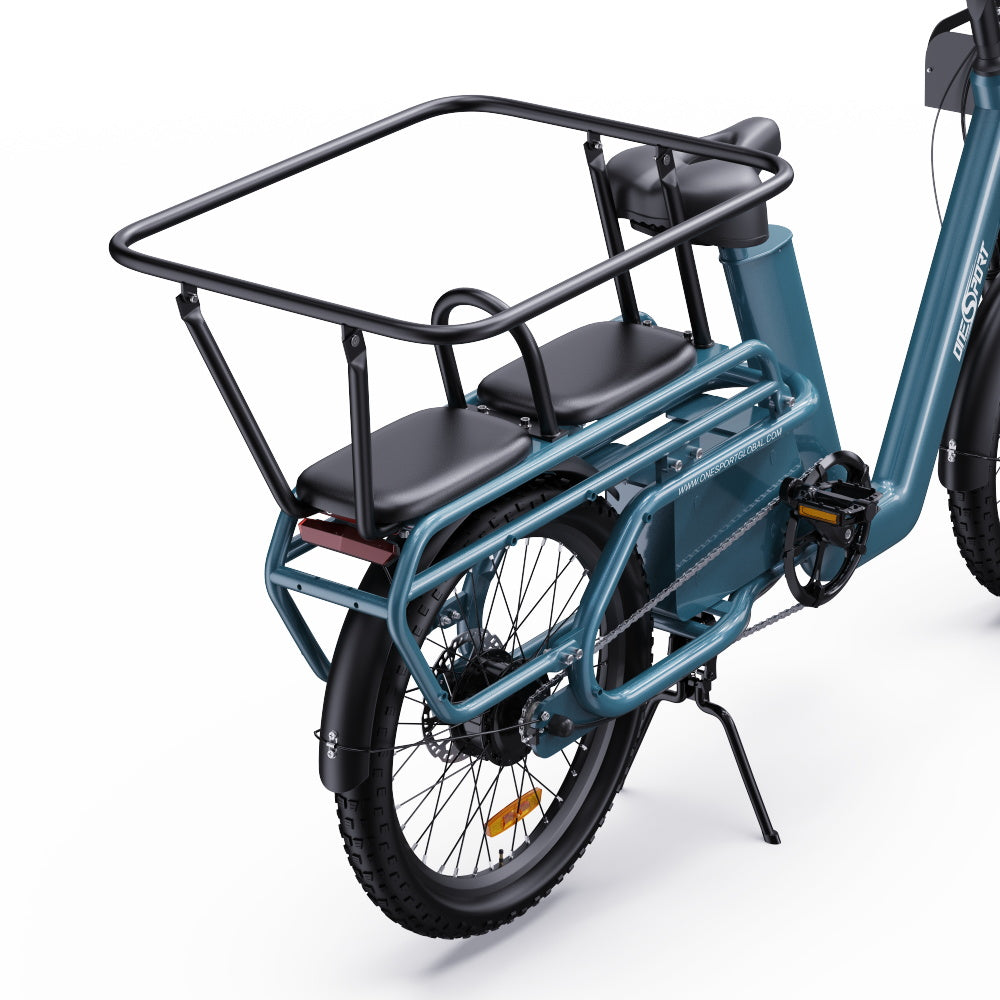

Rear Shelf
The iron rear shelf is detachable
Length
1860MM
Rear Height
720MM
Front Height
1160-1220MM
Packing Size
1585MM*270MM*730MM
Tire Size
20x2.6 Inches
Net Weight/Gross Weight
41.7Kg/49.4Kg

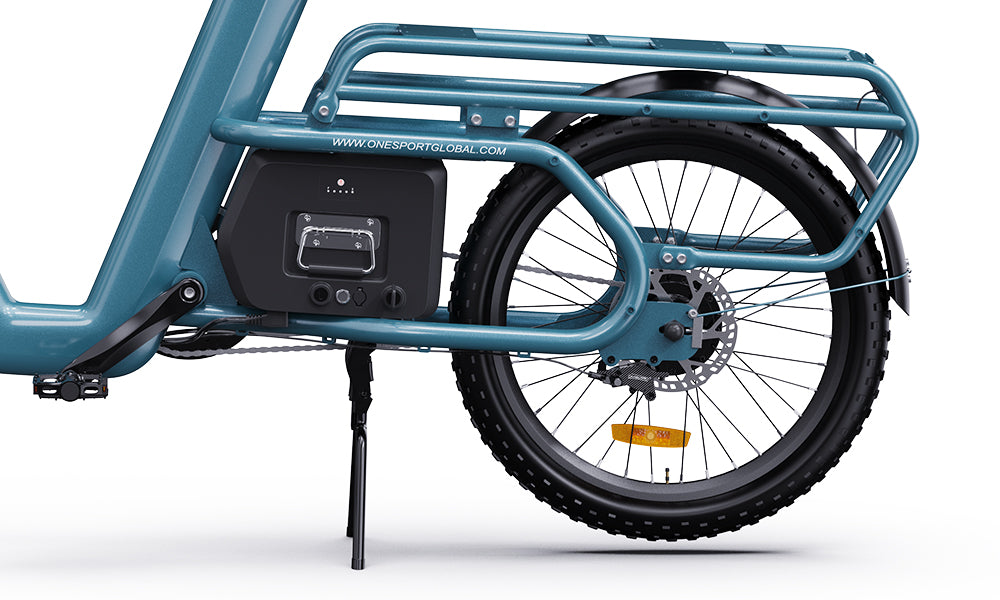

Battery Size
273MM*195MM*110MM
Front Handle Adjustable Height
1160MM-1220MM
Saddle Height
850MM-1050MM
Brake Pad Diameter
160MM

Battery Capacity
27Ah
Battery Rated Voltage
48V
Motor Form
Assist Mode
Motor Rated Power
500W
Torque
62Nm
Controller
9-MOSFET Controller
Charger Output
54.6V 3.0A
Charging Time
8-10 Hours
Proper Temperature
-10°C-40 °C
Waterproof Level
IPX5
